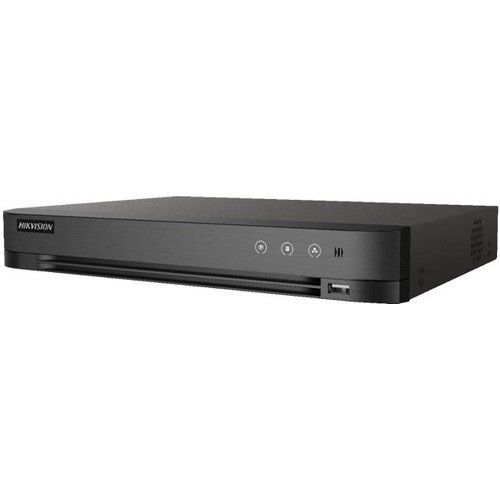

Hikvision İDS-7216HQHI-M1/S 16 Kanal AcuSense DVR

Ana Sayfa / Güvenlik Ve Network Sistemleri / Kayıt Cihazı

Hikvision İDS-7216HQHI-M1/S 16 Kanal AcuSense DVR

Marka:

HikVision

Ürün Kodu:

2313165

Ürün Barkodu:

6931847153526

Stok:

Stokta Yok

Depolar:

● Erenler Satış Mağazası: 0

● Düzce Satış Mağazası: 0

● Kavaklar Satış Mağazası: 0

● İzmit Satış Mağazası: 0

7.030,00 ₺

1.000,00 ₺ ve üzeri siparişlerinizde ücretsiz kargo

Ekingen

Ürün Adı: Hikvision İDS-7216HQHI-M1,S 16 Kanal AcuSense DVR

Ürün Bilgisi

TEKNİK ÖZELLİKLERİ

Acusense 16 kanal DVR, H.265, H.265+ sıkıştırma, 1 adet 10 Tb disk desteği, 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps (N)(Ip kamera desteği cihazın kanal sayısına ve serisine göre değişiklik göstereceğinden teknik dökümanlardan lütfen kontrol ediniz)1 HDMI 1080P, 1 VGA 1080P, 2 adet USB, 1 Kanal ses giriş - 1 Kanal ses çıkış, Metal kasa, 12V

Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution4MP
Video Bitrate32 Kbps to 6 Mbps
Dual-StreamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps

Video And Audio
IP Video Input8-ch (up to 24-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input16-ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
HDMI OutputYes
CVBS InputPAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 ?),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous Playback16-ch
AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input
3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
*: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.
Audio Output1-ch, RCA (Linear, 1 K?)
Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)

Decoding
Recording Resolution
Main stream:
When 1080p lite mode not enabled:
For 4 MP stream access:
4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Network
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection128
Network Interface
1,RJ45 10M/100M/1000M self-adaptive
Ethernet interface
